Geomembrane Welding Machine

3. What Are Features of BPM Geomembrane Welding Machine

BPM Geomembrane welding machines are engineered with a range of features to ensure efficient, precise, and reliable seaming:

• Adjustable Temperature Control: Precise temperature regulation is crucial for achieving optimal welds with different types and thicknesses of geomembranes (e.g., HDPE, LDPE, PVC, TPO). This feature allows operators to fine-tune the heat to the specific material properties, preventing burning or under-welding.
• Variable Speed Control: The ability to adjust the welding speed allows operators to adapt to different site conditions, material thicknesses, and welding techniques. Consistent speed contributes to uniform and strong seams.
• Pressure Adjustment:Controlled pressure application is vital for ensuring proper fusion of the geomembrane layers. Welding machines often feature adjustable pressure rollers or systems to apply consistent force along the weld path.
• Integrated Testing Capabilities (Optional):Some advanced machines incorporate testing mechanisms, such as air pressure testing channels, to immediately assess the integrity of the weld as it is being created. This allows for on-the-spot quality control and reduces the risk of undetected leaks.
• Durable Construction: Geomembrane welding machines are built to withstand the demanding conditions of construction sites, often featuring robust frames, high-quality components, and protective housings.
• User-Friendly Interface:Intuitive controls and clear displays enhance operator efficiency and reduce the potential for errors. Digital readouts for temperature and speed are common.
• Portability and Maneuverability:Depending on the application, welding machines can range from handheld units for smaller repairs and detail work to larger, self-propelled machines for extensive lining projects. Features like ergonomic handles and lightweight designs enhance portability.
• Different Welding Methods:Geomembrane welding machines employ various methods, including:

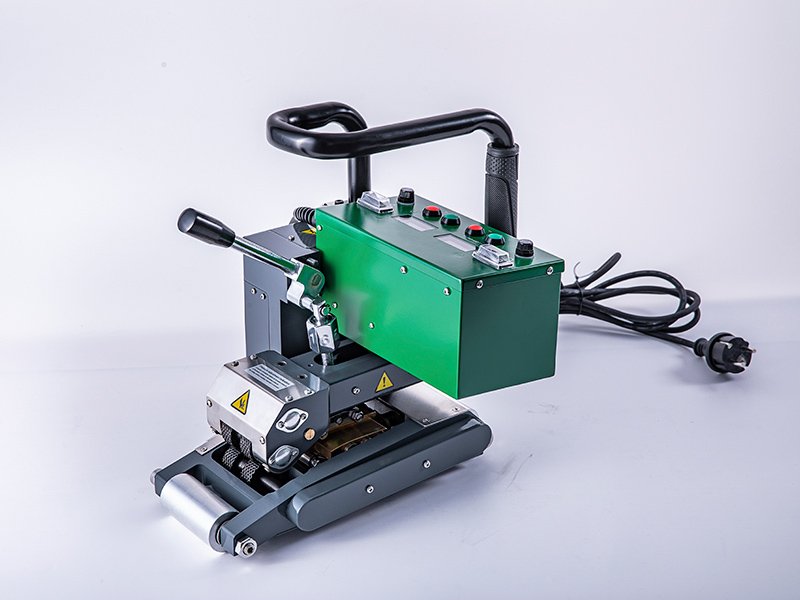

  • Hot Wedge Welding:Uses a heated wedge inserted between the overlapping geomembrane sheets to melt the material before pressure rollers fuse them together. This is a common and efficient method for many geomembrane types.
  • Hot Air Welding:Uses a jet of hot air to melt the surfaces of the overlapping geomembranes, followed by pressure rollers to create the bond. This method is often used for more complex shapes and repairs.

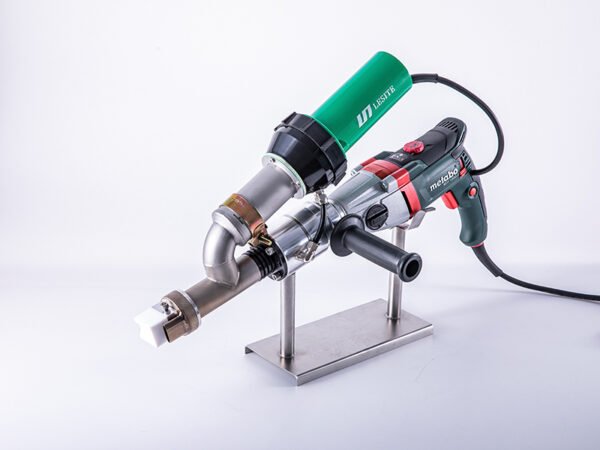

  • Extrusion Welding:Involves melting a bead of compatible thermoplastic material and extruding it into the seam between two geomembrane sheets, creating a strong fusion weld. This is often used for thicker materials and repairs.
• Safety Features: Incorporating safety mechanisms such as thermal overload protection and emergency stop buttons to ensure operator safety.

4. What Are Advantages of BPM Geomembrane Welding Machine

Investing in a quality geomembrane welding machine offers numerous advantages for geosynthetic installation projects:

• Ensured Seam Integrity:The primary advantage is the creation of consistent, strong, and leak-proof seams, which are critical for the performance and longevity of the geomembrane lining system. This minimizes the risk of costly leaks and environmental contamination.
• Increased Efficiency: Compared to manual seaming methods, welding machines significantly speed up the installation process, allowing for faster project completion and reduced labor costs. Self-propelled machines can cover large areas efficiently.
• Consistent Weld Quality:Automated or semi-automated welding processes ensure a more uniform and reliable weld compared to manual techniques, which can be subject to operator variability.
• Cost-Effectiveness: While the initial investment in a welding machine is required, the increased efficiency, reduced rework due to faulty seams, and long-term performance of the lining system contribute to overall cost savings.
• Versatility: Different types of welding machines and welding methods allow for seaming various geomembrane materials (HDPE, LDPE, PVC, TPO), thicknesses, and project requirements.
• On-Site Quality Control:Machines with integrated testing capabilities allow for immediate assessment of weld quality, enabling quick identification and correction of any issues.
• Reduced Material Waste: Precise welding techniques minimize material overlap and waste.
• Adaptability to Different Conditions:Modern welding machines are designed to operate in various weather conditions and on different terrains, enhancing project flexibility.

Improved Project Reliability: By ensuring strong and reliable seams, welding machines contribute to the overall reliability and long-term performance of containment and barrier systems.
