Continuous Filament Nonwoven Geotextile

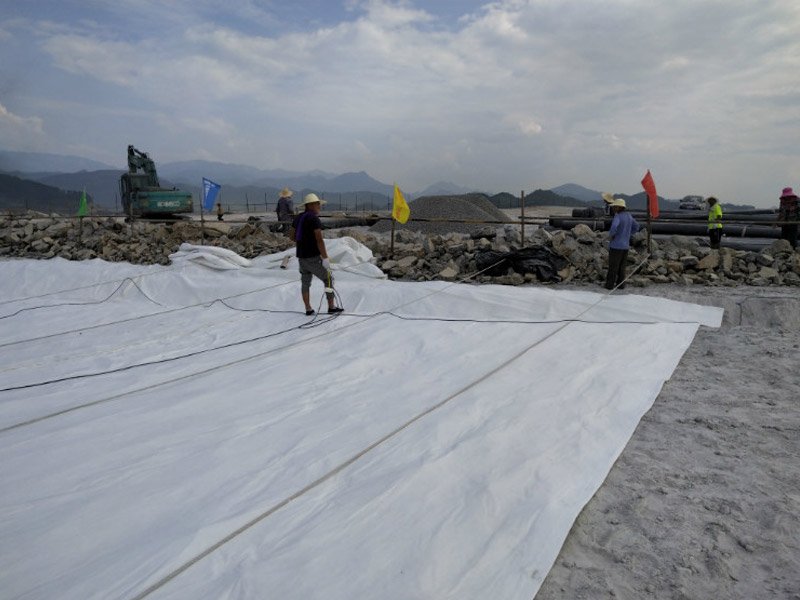

Quality Continuous Filament Geotextile for Road Construction

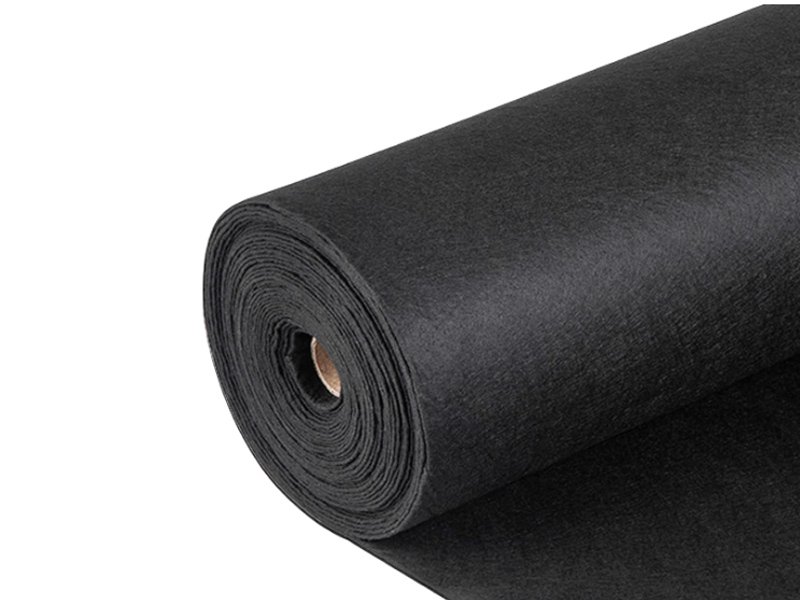

Best Filament Non Woven Geotextile Sale

ISO9001, ISO14001, OHSAS18001 approved factory
100% virgin raw material
Complete width and thickness specifications
OEM/ODM availability
Free sample and trial order available
Best factory price, fast delivery

Continuous Filament Non Woven Geotextile is a versatile and high-performance material that offers numerous benefits for a wide range of applications. Its key features, including high tensile strength, good elongation, excellent tear resistance, and consistent filtration properties, make it an essential component in civil engineering and environmental protection projects. Continuous Filament Non Woven Geotextile is an excellent choice. It offers a perfect balance of performance and value, making it a standout option in the geosynthetic market.

If you are looking for a versatile, durable, and cost-effective geotextile solution to enhance the quality and longevity of their projects, partnering with reputable geotextile Manufacturers and geotextile Factories like BPM Geosynthetics is essential. We not only provide top-quality materials but also offer technical support and expertise to ensure the successful implementation of geotextile solutions.

1. What Is A Continuous Filament Non Woven Geotextile

Continuous Filament Non Woven Geotextile is an advanced geosynthetic material crafted from continuous polypropylene or polyester filaments. These filaments are uniformly spun over a flat surface and thermally bonded together to form a cohesive, tear-resistant fabric. Unlike woven geotextiles, this material is not woven but rather formed through a continuous process that enhances its strength and durability.

1.1 Manufacturing Process

The production of Continuous Filament Non Woven Geotextile involves several key steps:

Fiber Production: Polypropylene or polyester resin is melted and extruded through fine nozzles to form continuous filaments.
Fiber Spreading: These filaments are spread out to form a uniform web on a flat surface.
Thermal Bonding: The web is passed through heated rollers or ovens, thermally bonding the fibers together to create a stable network.

This meticulous manufacturing process ensures the geotextile possesses excellent uniformity, puncture resistance, and filtration efficiencies.

2. Technical Data Of BPM Continuous Filament Non Woven Geotextile

Item	Test Method	Unit	BPM10	BPM15	BPM20	BPM25	BPM30	BPM35	BPM40	BPM45	BPM50	BPM60
Index Properties
Ultimate Tensile Strength, MD	ASTM D4595	KN/m	7	11	14	17	19	24	27	30	37	41
Ultimate Tensile Strength, TD	ASTM D4595	KN/m	6	10	12	15	17	21	25	28	34	38
Tensile Elongation	ASTM D4595	%	45	45	50	50	50	60	60	60	60	60
Grab Tensile Strength, MD	ASTM D4632	N	400	600	850	1000	1250	1450	1700	1900	2100	2500
Grab Tensile Strength, TD	ASTM D4632	N	350	550	700	900	1100	1250	1450	1600	1800	2150
Grab Elongation	ASTM D4632	%	45	45	50	50	50	60	60	60	60	60
Trapezoid Tear Strength, MD	ASTM D4533	N	160	300	350	430	490	540	630	710	770	920
Trapezoid Tear Strength, TD	ASTM D4533	N	140	270	330	400	450	510	610	690	750	900
CBR Puncture Strength	ASTM D6241	N	1000	1800	2300	2700	3200	3600	4400	4800	5800	6900
Apparent Opening Size O90	ASTM D4751	mm	0.12	0.11	0.11	0.10	0.09	0.09	0.08	0.08	0.08	0.08
Water Flow Q100	ASTM D4491	L/m²/s	250	235	220	200	185	165	125	110	90	80
Weight	ASTM D5261	g/m²	100	150	200	250	300	350	400	450	500	600
Thickness	ASTM D5199	mm	1.2	1.8	2.3	2.9	3.2	3.6	3.9	4.2	4.4	4.8
Roll Width	–	m	6	6	6	6	6	6	6	6	6	6
Roll Length	–	m	300	200	150	100	100	100	80	80	50	50

3. Key Features of Continuous Filament Non Woven Geotextile

3.1 Excellent Mechanical Properties

Continuous Filament Non Woven Geotextile boasts superior tensile strength and tear resistance, making it ideal for applications that demand high load-bearing capacity and durability.

3.2 Uniform Structure

The continuous filament structure provides uniformity in thickness and porosity, ensuring consistent performance across the entire fabric.

3.3 Puncture Resistance

The geotextile is highly resistant to punctures, protecting underlying layers from damage caused by sharp objects or heavy equipment.

3.4 Filtration Efficiency

With precisely controlled pore sizes, Continuous Filament Non Woven Geotextile allows water to pass through while effectively retaining soil particles, preventing clogging and ensuring long-term filtration performance.

3.5 Chemical Resistance

The polypropylene or polyester material used in its construction offers excellent resistance to chemicals, including acids and alkalis, extending the lifespan of the geotextile in harsh environmental conditions.

3.6 UV Resistance

The fabric is treated to enhance its resistance to UV radiation, preventing degradation when exposed to sunlight over extended periods.

3.7 Thermal Bonding

The thermal bonding process creates a stable network of fibers, ensuring dimensional stability and resistance to deformation under load.

3.8 Three-Dimensional Uniformity

The geotextile has three-dimensionally uniformly distributed physical properties, making it ideal for separation and protection applications.

3.9 Wide Range of Specifications

Available in various thicknesses, sizes, and grades, Continuous Filament Non Woven Geotextile can be customized to meet specific project requirements.

3.10 Quality Assurance

Products from reputable Geotextile Manufacturers like BPM Geosynthetics are certified to ISO9001 standards, ensuring consistent quality and performance.

4. What Are Advantages of Continuous Filament Non Woven Geotextile

4.1 Versatility

Continuous Filament Non Woven Geotextile can be applied in a wide range of projects, from road construction and erosion control to landfill lining and subsurface drainage systems. Its adaptability makes it a preferred choice for engineers and contractors.

4.2 Cost-Effectiveness

Despite its high-performance characteristics, Continuous Filament Non Woven Geotextile offers excellent value for money. Its durability reduces the need for frequent replacements, lowering long-term maintenance costs.

4.3 Ease of Installation

The lightweight and flexible nature of the fabric facilitates easy handling and installation. It can be cut and laid out quickly, reducing labor costs and project timelines.

4.4 Environmental Benefits

By enhancing the stability and longevity of infrastructure projects, Continuous Filament Non Woven Geotextile contributes to sustainable development. It reduces the environmental impact of construction activities and helps preserve natural resources.

4.5 Customization

Reputable Geotextile Factories offer customization services, allowing clients to specify thickness, size, and other parameters to meet unique project requirements.

4.6 Fast Delivery

Leading manufacturers like GEOSINCERE provide fast delivery services, ensuring that project timelines are met without delays.

5. What Is The Difference Between Short Fiber and Continuous Filament Nonwoven Geotextile?

The fundamental difference between short fiber and Continuous Filament Nonwoven Geotextile lies in the length of the fibers used to construct the fabric, which significantly impacts their respective properties and applications:

5.1 Fiber Length and Manufacturing

Short Fiber Nonwoven Geotextile:Made from staple fibers, which are short, cut lengths of synthetic polymers (typically a few centimeters long). These short fibers are mechanically entangled through needle punching or thermally bonded to create the fabric.
Continuous Filament Nonwoven Geotextile:Constructed from continuous, unbroken strands of synthetic polymers that are spun directly into a web and then bonded thermally, mechanically, or chemically. The filaments run the entire length of the fabric roll.

5.2 Key Property Differences

No	Feature	Short Fiber Nonwoven Geotextile	Continuous Filament Nonwoven Geotextile
1	Fiber Length	Short, cut staple fibers	Long, continuous filaments
2	Tensile Strength	Generally lower to medium	Generally higher
3	Creep Resistance	Lower	Higher
4	Dimensional Stability	Lower	Higher
5	Uniformity	Can be less uniform due to random fiber orientation	Generally more uniform due to controlled filament placement
6	Filtration Efficiency	Good, often used primarily for filtration	Excellent, engineered for both filtration and reinforcement
7	Permeability	Generally high	Can be engineered for a range of permeability
8	Puncture Resistance	Moderate	Good to high
9	Tear Resistance	Moderate	Good
10	Cost	Generally lower	Generally higher due to the more complex manufacturing process
11	Primary Applications	Filtration, separation, basic soil stabilization	Reinforcement, critical filtration, long-term stability

In essence, Continuous Filament Nonwoven Geotextiles are engineered for higher performance and long-term durability in demanding applications where strength, creep resistance, and predictable behavior are critical. Short fiber nonwoven geotextiles are often favored for applications where filtration and separation are the primary requirements, and cost is a more significant factor. As leading Geotextile Manufacturers, we offer both types to cater to the diverse needs of the construction industry.

6. Can Filament Geotextile Be Used for Waterproofing?

While Continuous Filament Non Woven Geotextile is not primarily designed for waterproofing, it can play a crucial supporting role in water management systems. The fabric’s excellent filtration properties enable it to manage water flow, preventing the buildup of water pressure that can lead to structural damage. Additionally, it can be used in conjunction with waterproof membranes to provide an added layer of protection and enhance the overall effectiveness of waterproofing systems.

Applications in Water Management:

Subsurface Drainage: Facilitates the efficient movement of water, preventing waterlogging and soil erosion.
Roadway Drainage: Helps to divert water away from road bases, reducing the risk of pavement failure.
Landfill Leachate Collection: Assists in the collection and management of leachate, preventing contamination of surrounding areas.
Geomembrane Lining Systems: Provides protection for geomembranes used in water containment applications.

7. What Is Continuous Filament Non Woven Geotextile Used for?

Continuous Filament Non Woven Geotextile has a wide range of applications due to its excellent performance and versatility. Here are some common uses:

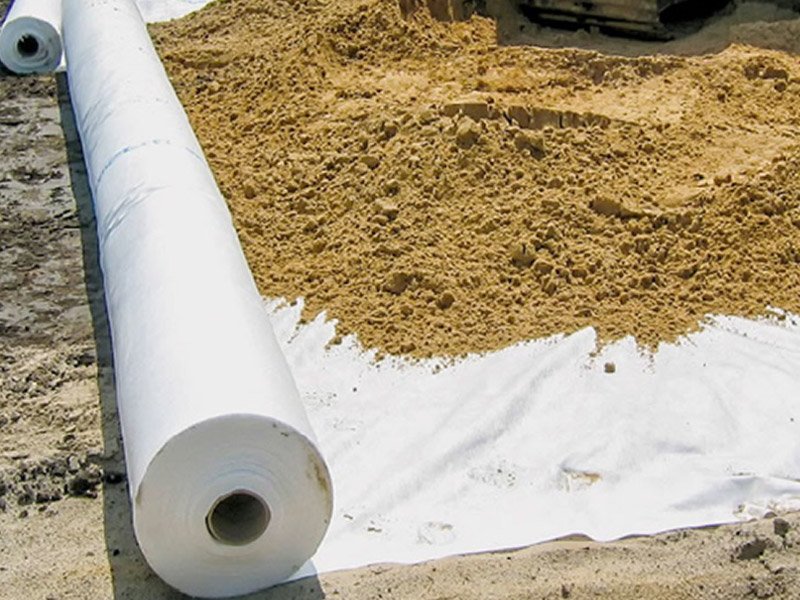

7.1 Road Construction

Separation and Stabilization: It is used to separate different soil layers, preventing the intermixing of fine and coarse materials. This helps maintain the integrity of the subgrade and subbase layers, ensuring road stability.
Subsurface Drainage: It facilitates efficient water drainage, preventing waterlogging and soil erosion. This is crucial for maintaining the road’s structural integrity and extending its lifespan.
Protection of Road Bases: It protects the road base from damage caused by external forces, such as heavy traffic and environmental factors.

7.2 Railway Works

Separation and Stabilization: It separates different soil layers, preventing intermixing and ensuring the stability of railway tracks.
Subsurface Drainage: It helps manage water flow, preventing waterlogging and soil erosion around railway tracks.
Protection of Railway Bases: It protects the railway base from damage caused by external forces, ensuring the safety and stability of railway operations.

7.3 Subsurface Drainage

Trench or French Drains: It is used in the construction of trench or French drains to facilitate efficient water drainage.
Pipe or Drain Wrapping: It is used to wrap around pipes or drains, providing protection and enhancing drainage efficiency.

7.4 Erosion Control

Soil Stabilization: It stabilizes soil, preventing erosion caused by wind, water, or other natural forces.
Trench or French Drains: It is used in erosion control projects to manage water flow and prevent soil erosion.

7.5 Landfill Lining

Geomembrane Lining Systems Protection: It provides protection for geomembrane lining systems used in landfills, preventing damage from sharp objects or heavy equipment.
Waste Disposal System Protection: It protects the waste disposal system from damage, ensuring the containment of waste materials and preventing environmental contamination.

7.6 Tunnel Construction

Protection of Tunnel Structures: It is used to protect tunnel structures from damage caused by external forces, ensuring the safety and stability of tunnel operations.
Water Management: It helps manage water flow within tunnel structures, preventing waterlogging and soil erosion.

7.7 Geomembrane Lining Systems Protection

Protection of Geomembranes: It provides additional protection for geomembranes used in various water containment applications, such as ponds, reservoirs, and landfills.
Enhanced Durability: It enhances the durability of geomembrane lining systems, extending their lifespan and ensuring long-term performance.

7.8 Agriculture

Soil Banks: It is used to stabilize soil banks, preventing erosion and ensuring the integrity of agricultural land.
Ground Drains: It is used in the construction of ground drains to manage water flow and prevent waterlogging in agricultural fields.

7.9 Coastal Works

River Banks and Coast Erosion Control: It is used in river bank and coast erosion control projects to prevent soil movement and protect the structure of river banks and coasts.

Continuous Filament Non Woven Geotextile is a highly versatile material used in various applications across different industries. Its excellent separation, filtration, reinforcement, drainage, and protection functions make it an indispensable component in many engineering and environmental projects.
